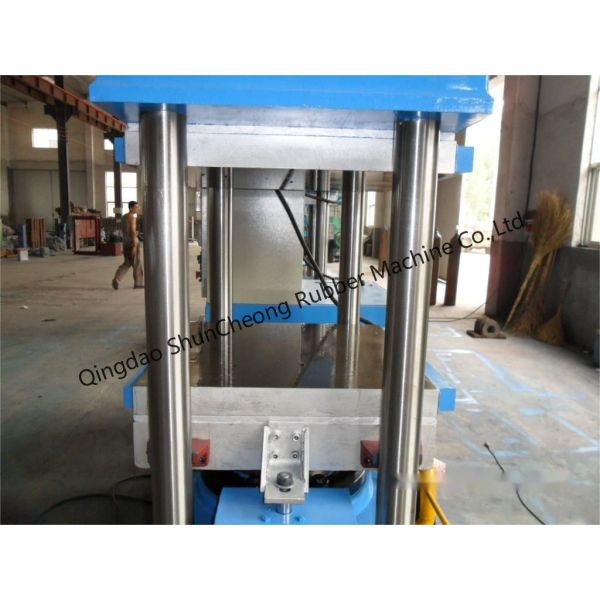

    High Standard Hydraulic Frame Rubber Vulcanizing Press Machine

    Ask Lasest Price
    Brand Name : SFC
    Model Number : XLB-1200*1200
    Certification : CE、ISO、SGS
    Price : USD:$8000(1-3);$7000(>3)
    Payment Terms : L/C, T/T
    Supply Ability : 500sets/year
    Delivery Time : 1 - 3(sets)40(days);>3(sets) To be negotiated
    • Product Details
    • Company Profile

    High Standard Hydraulic Frame Rubber Vulcanizing Press Machine

    High Standard Hydraulic Frame Rubber Vulcanizing Press Machine

    It is mainly used for pressing rubber products, engineering rubber, rubber sheets, etc. The product has large pressure per unit area, ensuring product quality. According to the process requirements of the product, a push-pull die device can be configured to reduce labor intensity. The control methods include manual control, electronic control, and PLC automatic control.


    Frank Zhang

    Business Manager

    sales-8@sfcjx.com

    Product Description:

    High Standard Hydraulic Frame Rubber Vulcanizing Press MachineHigh Standard Hydraulic Frame Rubber Vulcanizing Press MachineHigh Standard Hydraulic Frame Rubber Vulcanizing Press Machine


    The technical parameters for some models frame vulcanizing machines:

    Product ModelXLB-1200x1200XLB-1500x1500XLB-1800x1800XLB-2000x2000
    Total Press (MN)5.0102020.00
    Plate Size(mm)1200x12001500x15001500x25002000x2000
    Plate Daylight (mm)Ф450/Ф600Ф600Ф600Ф600
    Working Layer1111
    Piston Stroke(mm)200/500700800700
    Unit Press(Mpa)2.2/3.474.446.175.0
    Motor Power(kw)5.51320.520.5
    Overall Size(mm)1920*1300*21604300*1600*43104400*1900*19654500*1900*1965



    Quality High Standard Hydraulic Frame Rubber Vulcanizing Press Machine for sale
