Force Feeding Single Screw Rubber Extruder Machine With Strainer

A force-feeding single-screw rubber extruder machine with a strainer is a specific type of rubber extrusion equipment that combines the functions of feeding raw rubber material and removing impurities using a straining mechanism.

Here's a breakdown of the key components and processes involved:

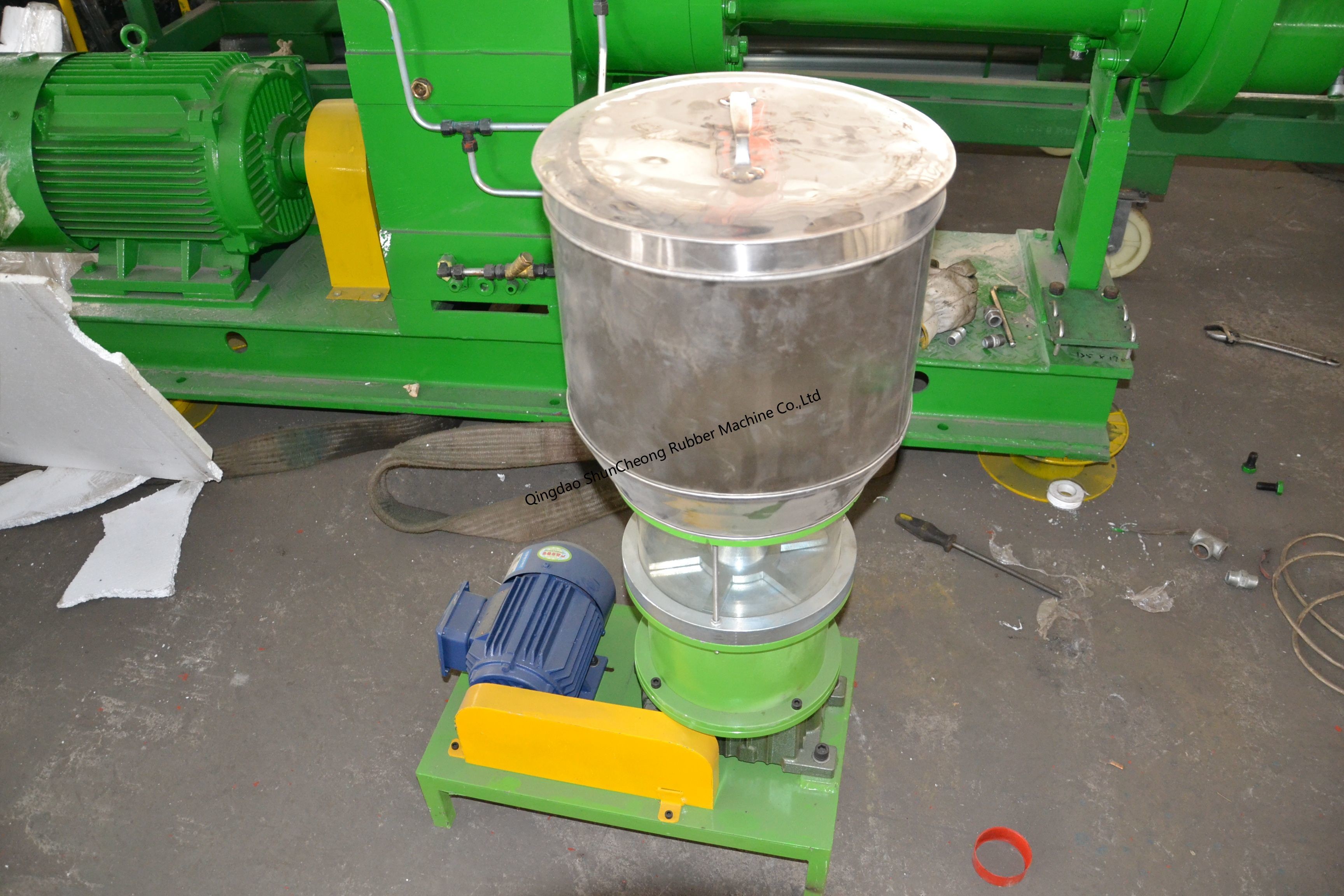

1. Feeding System: The force-feeding single-screw rubber extruder machine is designed with an efficient feeding system to introduce the raw rubber material into the extruder. This system typically consists of a hopper where the rubber material is loaded and a feeding mechanism that ensures a consistent and controlled supply of rubber into the extruder.

2. Single Screw: The extruder features a single rotating screw that is responsible for conveying and processing the rubber material. The screw is designed with a specific configuration, including varying flight depths and pitch, to facilitate the desired mixing, shearing, and melting of the rubber.

3. Straining Mechanism: Incorporated within the extruder, usually at the beginning of the screw, is a strainer or a screen changer. This component is designed to remove impurities and foreign particles from the rubber material as it is forced through the machine. The strainer can be a screen pack or a continuous belt-type filter that traps contaminants while allowing the rubber to pass through.

4. Heating and Cooling Zones: The extruder is equipped with heating and cooling zones along the barrel length to control the temperature of the rubber material. Heating elements, such as electric heaters or steam jackets, raise the temperature to soften the rubber for processing, while cooling systems, such as water cooling, maintain the desired temperature profile to prevent overheating or degradation.

5. Die and Die Plate: At the end of the screw, the extruder is equipped with a die and die plate. The die determines the final shape and dimensions of the extruded rubber product, while the die plate helps control the flow and pressure distribution of the rubber material.

6. Downstream Equipment: Depending on the specific application, the extruded rubber may undergo further processing or finishing steps. This can include cooling, calibration, cutting, or coiling systems, which are typically integrated into the extrusion line after the extruder.

Force-feeding single-screw rubber extruder machines with strainers are commonly used in the rubber industry when processing materials that contain impurities or contaminants. The straining mechanism helps ensure the quality and purity of the final extruded rubber product by removing unwanted particles during the extrusion process.

This equipment has the characteristics of high production capacity, low temperature of the rubber material, low power consumption, good mixing quality, and uniform plasticization. It can evenly and stably extrude rubber materials of various mouth shapes with one bolt, so it can be widely used. Extrusion molding of hoses, inner tubes, tapes, inner linings, sealing strips, wire connections, sheaths, side tables, sub-mouth glue, etc.

Frank Zhang

Business Manager

sales-8@sfcjx.com

The technical parameters for some models rubber Extruder :

Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Qingdao west coast new economic district, which is a high-tech enterprise specializing in the production of rubber machinery in China. Honorary titles of Qingdao "Specialized and New" Enterprise, National "High-tech" Enterprise, etc. has been achieved, trademark "顺富昌" registered, and has passed ISO9001:2015 quality system certification, Swiss SGS certification and CE export certification. All the machines are designed with 3D software and are not only sold all over the country, but also exported to the United States, Britain, Russia, the Netherlands, Thailand, Malaysia, Indonesia, Chile, Mexico, Ukraine, Uzbekistan, France and many other countries and regions.

The company has a registered capital of 5 million yuan, an independent R&D team and technical engineers with 5-20 years of experience in the same industry, and more than 20 product patents. So far, our company has mastered a number of advantages in rubber machinery, and has taken the lead in the industry.

The main products of our company including new banbury mixer, rubber mixing mill, vulcanizing press, rubber calender, batch of cooler, rubber kneader, forced feeding straining extruder, new waste tire recycling line, reclaimed rubber equipment etc. , and can design and manufacture various special rubber machinery according to customer requirements.

Since 2019, our company’s newly developed EPDM runway granules production line, rubber band production line, automotive butyl sheet production line, sound insulation and shock cushion production line and rubber dredging pipe production line, turnkey projects ranging from production equipment to product manufacturing technology have been used on-site by different customers at home and abroad, and have received good reviews.

All employees of Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd are willing to provide high-efficiency rubber processing equipment for all customers with first-class technology, quality and efficient service.

Sincerely welcome you to visit our company for further more discussions.
