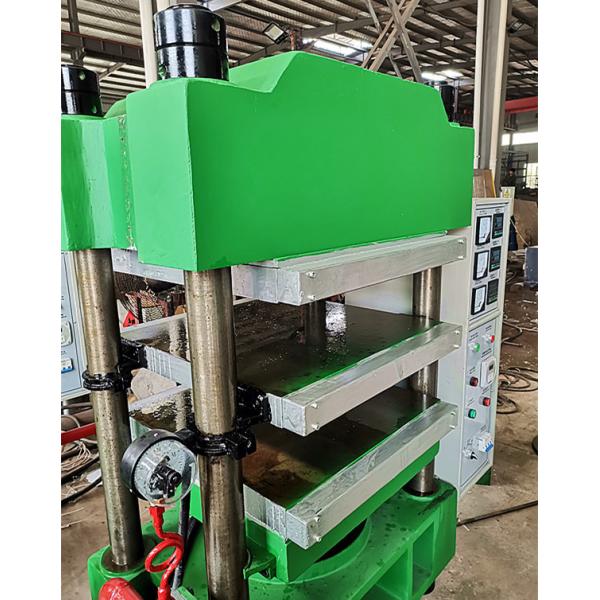

XLB-350×350×2 Rubber Hydraulic Press Machine/ Vulcanizing Press
Machine/ Rubber Press / High-Quality Vulcanizing Machine
Product Introduction
1. This machine is suitable for vulcanizing all kinds of rubber
products. It is an advanced hot pressing equipment for pressing all
kinds of thermosetting rubber.
2. There are three heating methods: electric heating, steam heating
and heat transfer oil heating.
3. Auto PLC or electric relay control, auto bumping.
4. Fast plate closing speed, long time pressure retaining,
backpressure retaining for better product quality.
5. Quick release valve make the opening speed very fast.
6. Plate is designed specially, which make temperature uniform on
the plate.
7.The machine can be customized according to the needs of
customers.
| Model | XLB-350×350×1/4 | XLB-400×400×1/4 | XLB-500×500×1/4 | XLB-600×600×1/4 | XLB-700×700×1/4 | XLB-750×850×1/4 | XLB-900×900×2 |
| Total Pressure(MN) |
0.25
| 0.5 | 0.63 | 1.00 | 1.20 | 1.60 | 2.00 |
| Plate Distance(mm) |
125
| 125 | 125 | 125 | 125 | 200 | 300 |
| Working Layer No. |
1-4
| 1-4 | 1-4 | 1-4 | 1-4 | 1-4 | 2 |
| Unit Area Pressure of Hot Plate(Mpa) |
2.04
| 3.13 | 2.52 | 2.77 | 2.45 | 2.51 | 2.47 |
| Plunger Stroke(mm) |
250
| 250 | 250 | 250/400 | 250 | 400 | 400 |
| Heating Mode |
Electricity
| Electricity /Stream | Electricity /Stream | Electricity /Stream | Stream | Electricity /Stream | Stream |
| Motor Power(KW) |
2.2
| 2.2 | 2.2 | 2.2 | 2.2 | 3 | 5.5 |
| Size(L×W×H)(mm) | 1400×480 ×1380 | 1600×500 ×1480 | 1750×600 ×1540 | 1880×720 ×1680 | 2000×850 ×1750 | 2250×1200 ×2200 | 1400×900 ×2400 |
About Us
Qingdao shun cheong rubber machinery manufacturing co.,ltd is a
chinese manufacturer with establishment in 2007, and have 10 years
experience in making various of rubber machines area, also pass the
ISO 9001:2008 , SGS, CE certificates too.
our factory major in rubber kneader/rubber mixing mill ; various of
plate vulcanizing press ; 2 roll/3 roll/4 roll rubber calender;
rubber batch off cooler; waste tire recycling line;reclaimed rubber
production line;conveyor belt production line;rubber seals
extruding &vulcanizing line etc...
Market: our machineries have exported to America, Mexico, ndia,
Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia,
Sri Lanka and many other countries and regions.
Our Service
♦ Our engineers can design target machines for customers and send
them the drawing to confirm. We are always on the side of saving
your cost.
♦ In the process of production, we will take photos and send to
customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of
lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation
drawing, user guide, maintenance manual and part drawing.
FAQ
1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very
beginning to the end of production. Every machine will be fully
assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand
components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How
long time will it take?
Yes, we can supply overseas service and technical support but
customer needs to pay for the cost of the installation. Small
machine usually takes within 2~3 days. Big production line usually
takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed
and confirmed in the order. The core of our company culture is
innovation,quality,integrity and efficiency. Also we have had many
good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name
of airport is Qingdao Jiaodong airport. We will pick up you at the
airport.
Contact Us
Bruce Xu
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd.
Web: www.cn-rubbermachine.com
Add:No.1 Kangting Road, Huangdao District, Qingdao City, China
Email:sales-6@sfcjx.com
Tel: +86(0)-532-85185697
Fax: +86(0)-532-85182359
Tel: +86 18306487221
Whatsapp: +86 18306487221
