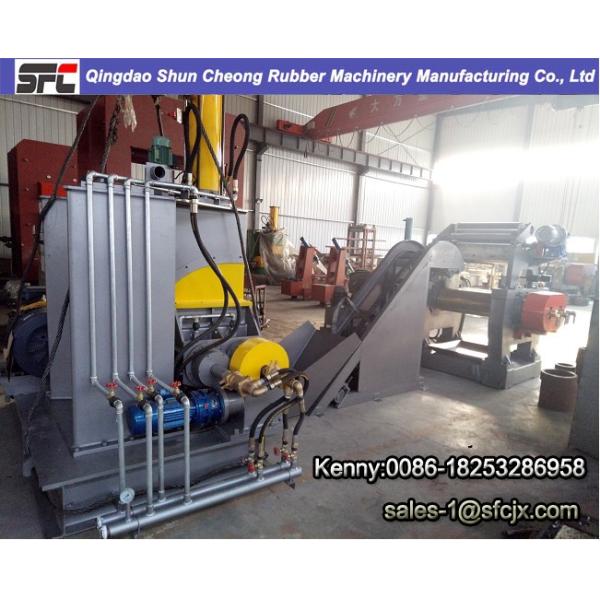

Rubber Plastics Kneading Machine / Dispersion Mixer For Rubber And
Plastic
Usage:
This Rubber Kneader is mainly used for plasticizing and mixing of
natural rubber, synthetic rubber, reclaimed rubber and plastics,
foaming plastics, and used in mixing of various the degree
materials.
Character:
1.Disperation Rubber/EVA/ Kneader/Silicon Machine
2.OEM Manufacturer ,keeping quality.
3.Supplying technical support
4.CE/ISO/SGS certificate
5.Guarantee one years
6.More than 20 years experience of making machinery
7.Sell to 113 countries on 6 continents.
Rubber Internal Kneader Features:
1. With completely condition, materials are mixed or plasticizing
under certain pressure, controllable temperature, which makes high
production efficiency and obtains excellent quality
2. Spiral angle and over lapping length of blades of the rotors are
of reasonable design and make the materials to be dispersed
uniformly
3. Rubber Internal Kneader surface where is contacted with the
materials are all plated with hard chromium and polished, which is
corrosion-resistant and wear-resistant
4. Jacket construction is adopted in rubber kneader parts that
surfaces contact with materials to achieve excellent water-cooling
or steam heating effect and fit in with the needs of plastics and
rubber processing technology.
Rubber Internal Kneader Parameter:
| Model | X(S)N- 3x32 | X(S)N- 5x32 | X(S)N- 10x32 | X(S)N- 20x32 | X(S)N- 25x32 | X(S)N- 35x30 | X(S)N- 55x30 | X(S)N- 75x30 | X(S)N- 110x30 | X(S)N- 150x30 | X(S)N- 200x30 |
Total Volume Of Mixing Chamber(L) | 8 | 15 | 25 | 45 | 55 | 75 | 125 | 170 | 250 | 325 | 440 |
Working Volume Of Mixing Chamer(L) | 3 | 5 | 10 | 20 | 25 | 35 | 55 | 75 | 110 | 150 | 200 |
Driving Motor Power(KW) | 5.5 | 11 | 22 | 37 | 37 | 55 | 75 | 110 | 185 | 220 | 280 |
| Tilting Motor Power(KW) | 0.55 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 5.5 | 11 | 11 |
| Tilting Angle(°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 135 | 135 |
Rotating Speed of Rotor(Front/Rear) (r/min) | 32/24.5 | 32/23.5 | 32/25 | 32/27 | 32/24.5 | 30/24.5 | 32/24.5 | 32/24.5 | 32/24.5 | 30/24.5 | 30/24.5 |
| Pressure of Cooling Water(MPA) | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Overall Dimension (LxWxH)(mm) | 2000x 1000x 2220 | 1850x 1200x 2280 | 2450x 1650x 2350 | 2675x 1650x 2560 | 2675x 1650x 2560 | 3200x 1900x 2950 | 3230x 1927x 2958 | 3325x 2615x 3105 | 4075x 2712x 3580 | 4250x 2750x 4106 | 4250x 3400x 4215 |
| Gross Weight(T) | ~2 | ~2.1 | ~2.1 | ~4 | ~4.5 | ~6.3 | ~7.1 | ~9.5 | ~14.9 | ~19.5 | ~22.5 |
Packaging & Shipping
Equipment painting completed before delivery, and then wrapped with
stretch film, avoid rubbing the paint off the surface, wooden
packaging can be customized, key parts, such as electronic control
box, will be wrapped by shockproof packaging materials, and then
packed in wooden cases.
Our Services:
♦ Our engineers can design target machines for customers and send
them the drawing to confirm. We are always on the side of saving
your cost.
♦ In the process of production, we will take photos and send to
customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of
lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation
drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your
workers to operate the machine.
