    Industrial 3 Roll Calender Machine Calender Roller Machine XY Series

    Ask Lasest Price
    Brand Name : SFC
    Model Number : XY-1400
    Certification : CE, ISO
    Price : US$8,000.00-11,000.00
    Payment Terms : T/T,L/C
    Supply Ability : 850 set/year
    Delivery Time : 25-35 days
    • Product Details
    • Company Profile

    Industrial 3 Roll Calender Machine Calender Roller Machine XY Series

    PLC Control Rubber Three Roller Calender with Hard-Tooth Reducer
    Professional rubber calendering machinery for sheet processing, coating, and tire manufacturing applications.
    Product Specifications
    Model: XY-2/450X1500
    Certification: CE, ISO
    Condition: New
    Customized: Available
    Automatic Grade: Automatic
    Structure: Horizontal
    Control Method: PLC
    Reducer Type: Hard-Tooth Reducer
    Type: Rubber Calender
    Weight: <50 Tons
    Power: 10~100kw
    Voltage: 380V
    Using Life: ≥15 Years
    Production Capacity: 50 sets/Month
    Origin: Qingdao, China
    Available Models
    XY-230x630, XY-360X900, XY-360x1120, XY-400x1200, XY-450x1500, XY-610x1730, XY-710x2130, XY-810x2430
    Two Roll Rubber Calender machine overview showing industrial design

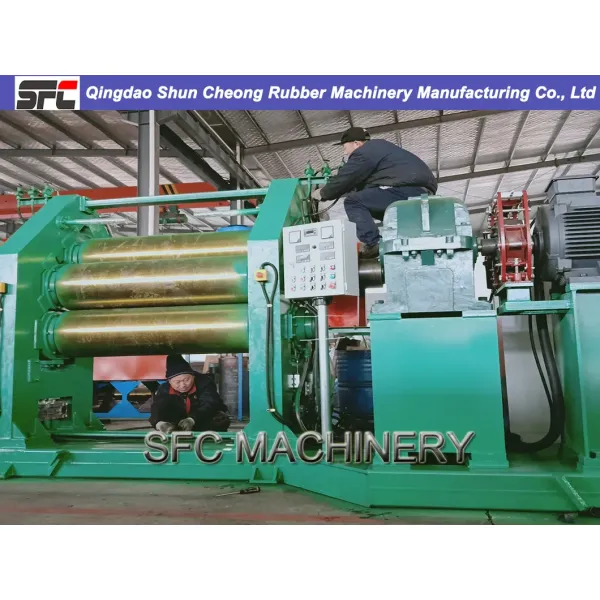

    Three Roll Calendering Machine close-up view of rollers
    Applications
    Suitable for rubber sheet processing, PVC sheet manufacturing, tire sheet production, and coating applications. Available in two, three, four, or five roller configurations.
    Key Features
    • Hollow Roll design available in 2, 3, 4, or 5 roller configurations
    • Drilled roll options with mirror-polished surfaces
    • Roll material: Cast iron alloy (LTG-H) with HS:76 hardness after quenching
    • Main bearing: Dual-listed Tiaoxin spherical roller bearings
    • Base construction: Cast iron (FC30) with lubrication holes
    • Aluminum seal-capping prevents oil leakage
    • Hardened gear reducer with six-grade precision
    • Automatic lubrication system with 0.37 KW power
    • Emergency brake system for overload protection
    Technical Specifications
    ItemXY-4Γ630XY-4Γ1120XY-4Γ1400XY-4Γ1500XY-4Γ1730XY-4Γ2130XY-4Γ2430
    Roller Diameter (mm)230360400450610710810
    Roller Working Length (mm)630112014001500173021302430
    Middle Roll Linear Speed (r/min)2.1-212-20.13-26.32.5-258-508-502-20
    Minimum Thickness (mm)0.20.20.20.20.150.15±0.1
    Motor Power (KW)155575110160185280
    Rubber Calender production line in operation
    Calender machine components and internal mechanisms
    Custom rubber machinery design and engineering
    Industrial rubber calender operation in factory
    Rubber machine manufacturing process details
    Calender machine quality control inspection
    Rubber calender technical details and specifications
    Final product inspection and testing
    Frequently Asked Questions
    Delivery Time
    Custom-designed machines require 25 to 35 days from engineering design to production completion.
    Quality Control
    Comprehensive quality control throughout production. Every machine is fully assembled and tested before shipment.
    Quality Guarantee
    1-year quality guarantee using world-famous brand components for optimal performance.
    Overseas Installation
    Available installation and commissioning services overseas. Small machines: 2-3 days; Large plants: approximately 30 days.
    Trust and Reliability
    We deliver exactly as ordered with a company culture built on innovation, quality, integrity, and efficiency.
    Factory Location
    Located in Qingdao City, Shandong province, China. Pickup available from Qingdao Liuting Airport.
